    Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ

    Industrial Grade COFDM Video Receiver For NLOS Mobile Transmisision 1/2/4/8MHZ


    Product introduction

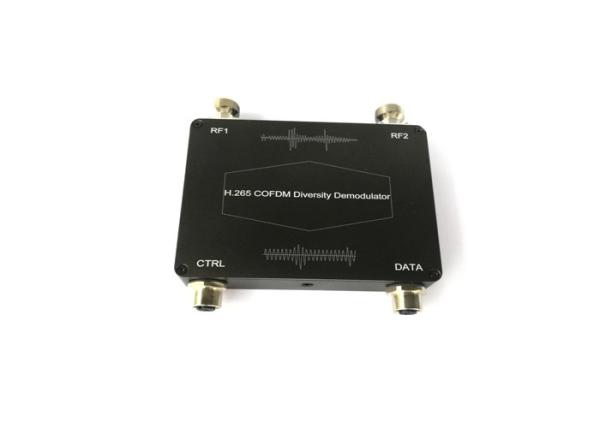

    HN-811 H.265 COFDM demodulation module supports narrowband (1MHz) COFDM multi-carrier applications and uses high-speed dual-channel diversity reception technology to achieve high-sensitivity long-distance reception.

    The module adopts highly integrated embedded design, provides transparent IP data interface, and outputs balanced and stable high-speed data stream. It can help you to design long-distance wireless links more conveniently and quickly, and provide HD digital broadcasting, security system, Applications in public security, armed police, firefighting, etc., widely used in multimedia video streaming, high-standard unmanned control systems, and intelligent control industries.


    Key Features


    l COFDM ultra-narrowband demodulation technology

    l Support military-grade non-standard 128-bit AES decryption

    l Transparent network / serial port high rate transmission

    l Support dual antenna multi-carrier diversity reception

    l Support full band / ultra narrow band / multi bandwidth demodulation (1M / 2M / 4M / 8M)

    l Provide functional setting and operation based on network platform. simple interface and easy to use.


    Technical characteristics


    ModelHN-811
    DC input rangeDC 6~17V
    Current320mA_12V/4W
    Working frequency300MHz~860MHz,Steping1MHz
    (other frequencies on request)
    Channel bandwidth1/2/4/8M
    RJ_451*RJ_45
    UART portunidirectional transparent TTL serial data reception
    Decryption methodDynamic 128 bit AES
    Video decodingH.265
    DemodulationCOFDM
    Parameter control methodSetting relevant parameters through network debugging software
    Dimension106mm*65mm*17mm
